Signalfire AI-9 Fiber Optic Splicer AI9 Fusion Machine 6 Motors Optical Fiber Welder Splicing Machine

Home > Product > Optical Testing Instruments > Fusion Splicer

Optical Testing Instruments

AI-9 Fusion Splicer

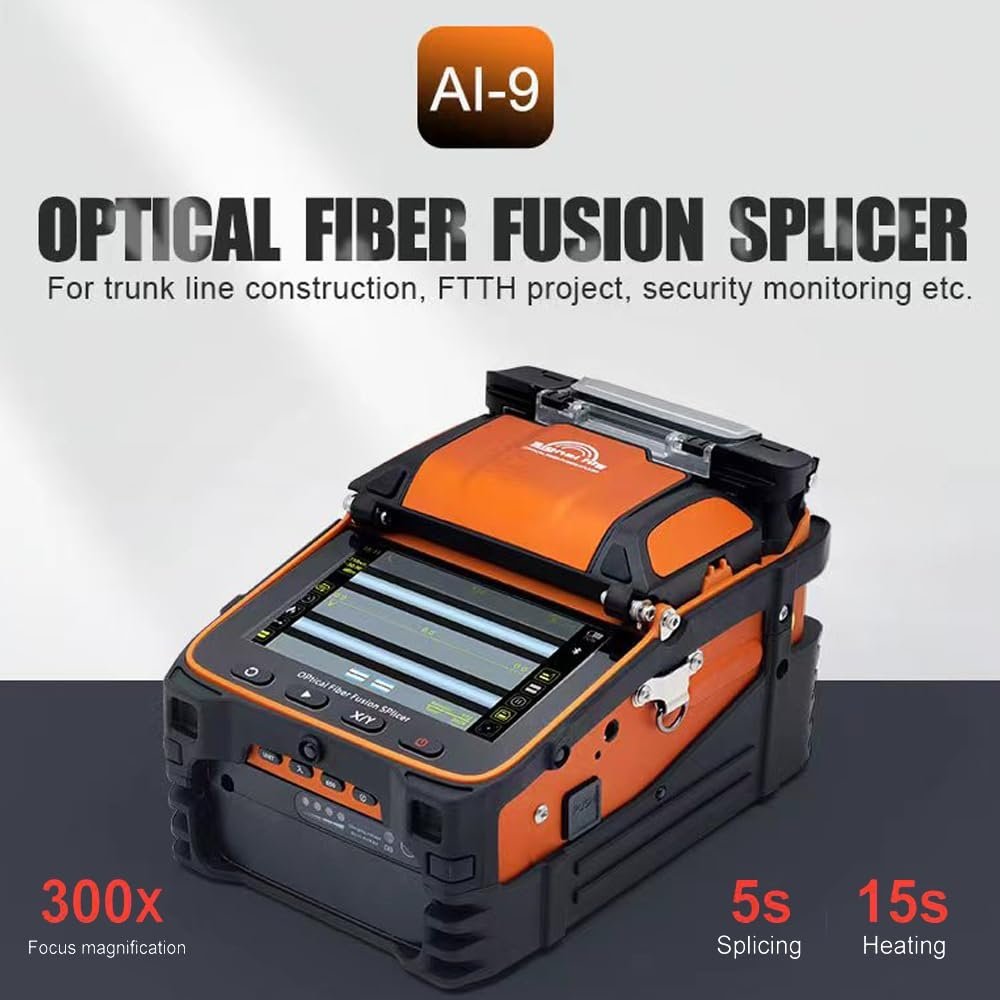

AI-9 is a fully automatic, mainline fiber optical fusion splicer with six motors and fiber core alignment, capable of welding long- distance fiber optic lines. Also within VFL and OPM function. Adopting industrial grade CPU, with fast running speed, 5-second rapid fusion welding, 15-second rapid heating, 5-inch highresolution LCD screen, 320x magnification;The work efficiency is increased by 50% compared to ordinary welding machines;Large- capacity lithium battery can be heated by fusion about 260 cores, outstanding performance in harsh environments such as high altitudes, deserts, and extreme cold.

INQUIRY NOW

ADD TO INQUIRY

Product Details Online Message Related Products

Product Details

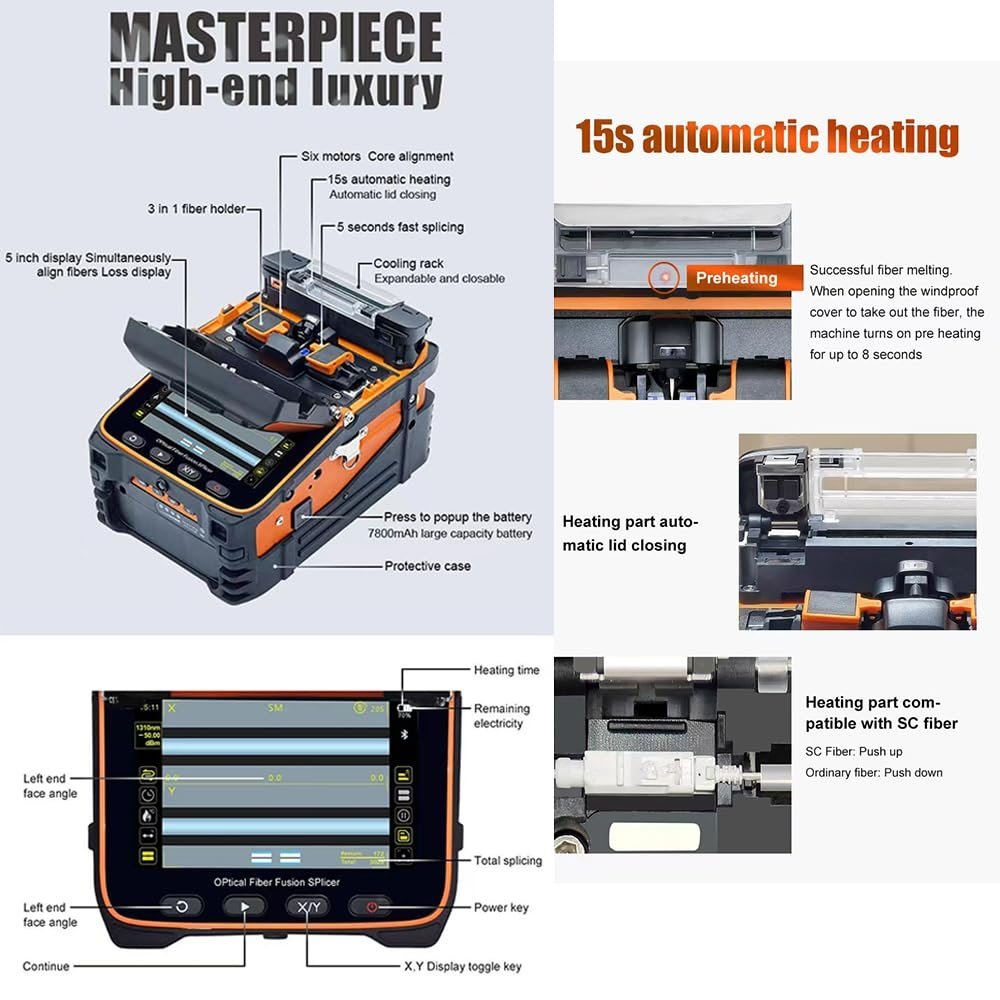

Features:

1. 5 inch display, Simultaneously align fibers, loss display
2. six motors core alignment

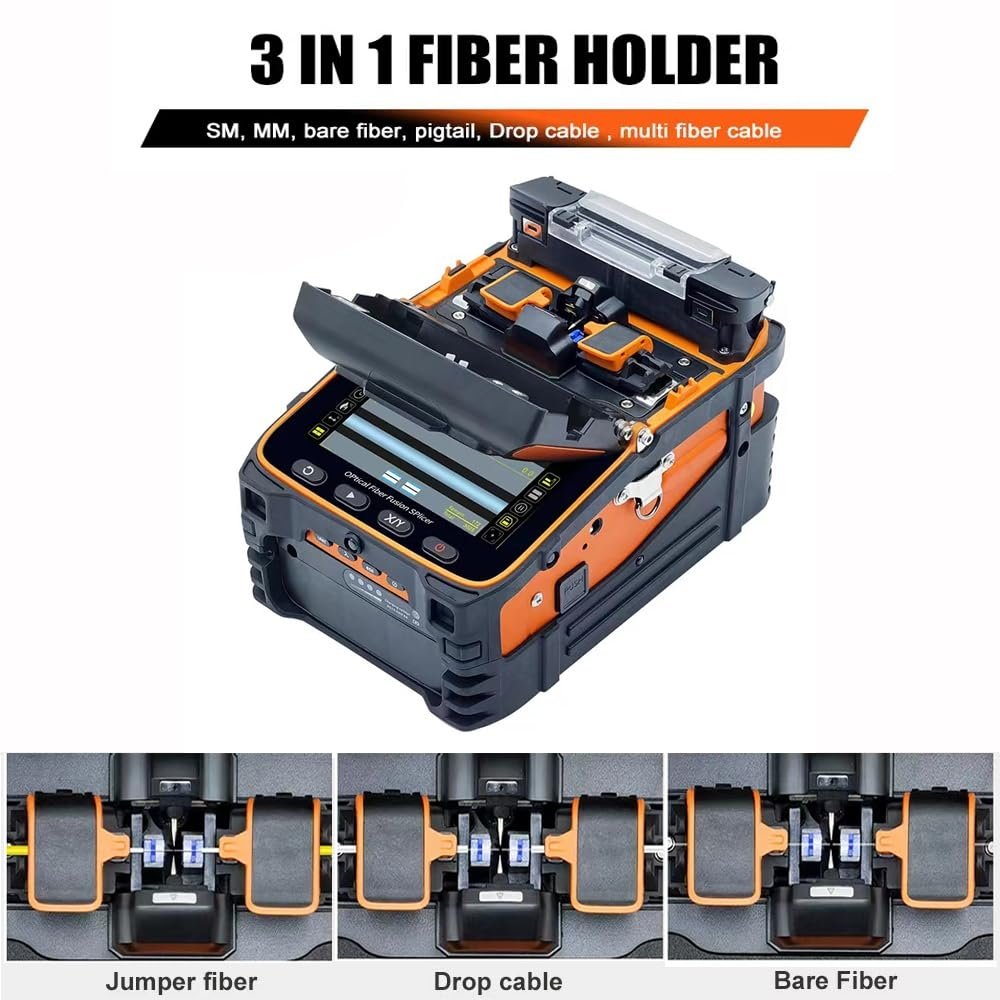

3. 3-in-1 fiber holder
4.5 seconds fast splicing

5.Cooling rack
6.7800mAh Large capacity

Application:

It is only suitable for terminal fiber splicing with low splicing precision requirements.very small amount, and relatively good construction environment (dust,temperature, altitude).

Technical Parameters:

Fiber alignment	Core/Cladding
Motor number	6motors(accurate of fiber alignment：0.1μm)
Splicing time	5s
Heating mode	15s, can be customized according to the external environment
Fiber type	Single - mode fiber (SMF - G.652C, BIF/G.657), Suitable for single mode, multi-mode, fiber, bare fiber, tail fiber, drop cable, jumper, invisible fiber fusion
The cladding diameter	80 - 150μm
Splicing loss	0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDSI)
Splicing mode	Automatic focusing core alignment, conventional high precision welding
Splicing way	Automatic, Semi-Automatic
Fiber holder	Three - in - one fixture, no need to change, suitable for single/multi - mode, multi - core cable/bare fiber, tail fiber, jumper fiver, drop cable

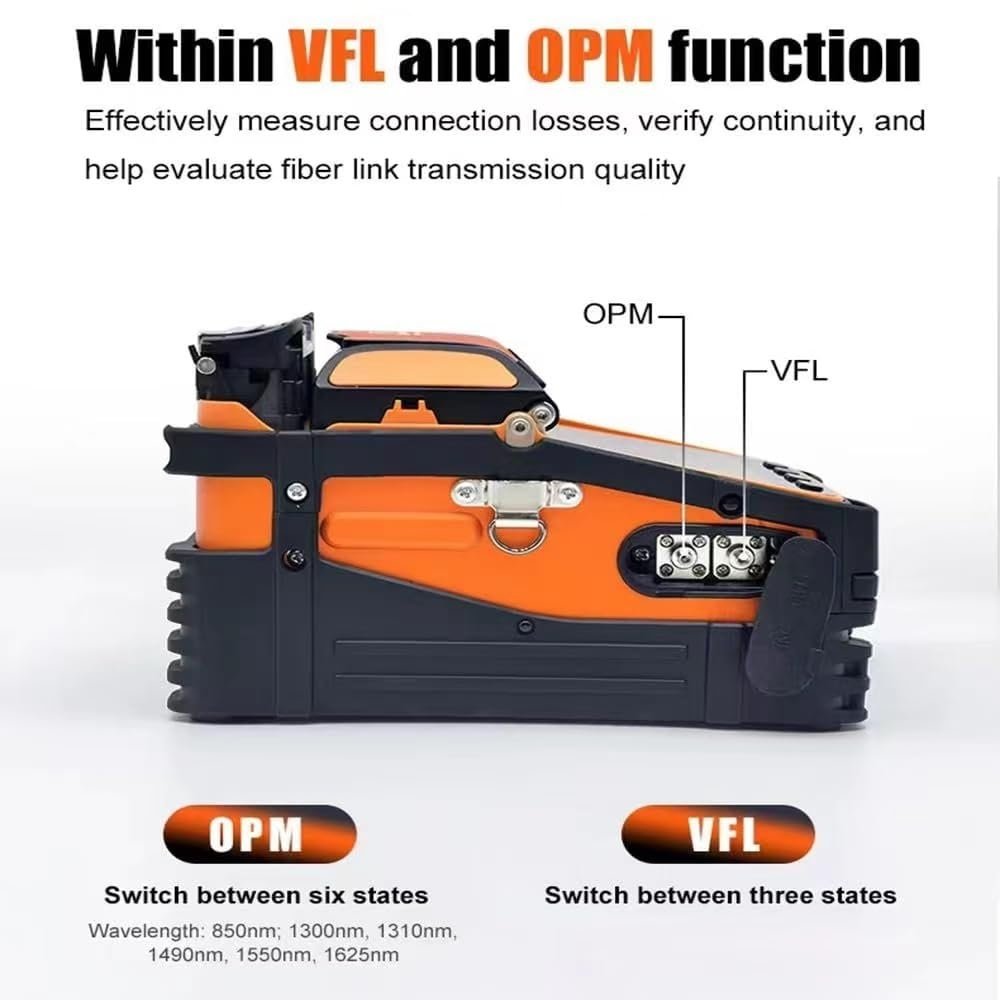

VFL	The machine comes with: power: 15mW, 2Hz flashing and steady on mode
OPM	Wavelength: 850nm、1300nm、1310nm、1490nm、1550nm、1625nm、980nm、1270nm、1577nm、 1650nm/Measurement range: -50+26dbm Absolute error: <0.3dB (-50dbm ~+3dBm range)

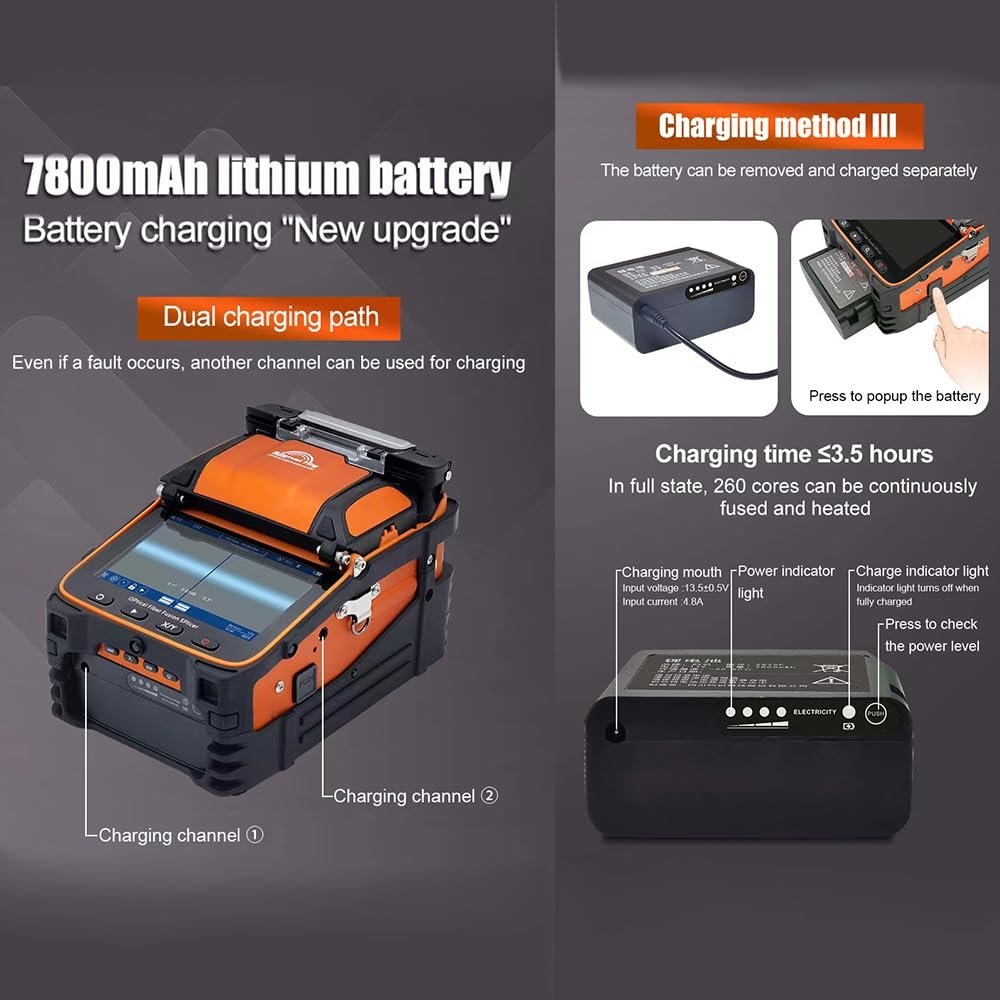

Battery capacity	7800mAh large capacity lithium battery charging time≤3.5;It can continuously weld and heat about260 cores
Machine system languages	10 languages available（Chinese、English、French、Russian、Italian、Portuguese、Polish、Spanish、 Thai、Arabic）
Magnification	320x (X or Y axis single display), 160x (X and Y axis dual display)
Fiber diameter	80 - 150μmCoating diameter: 100 - 1000μm
Cutting length	Coating layer 250μm below: 8 - 16mmcoating layer 250 - 1000μm: 16mm
Heat shrink tube	60mm, 50mm, 40mm, 25mm
Tensile testing \| standard	2N
display	5 inch TFT color display screen
Charge mobile device	The USB port can charge mobile devices such as mobile phones
Boot time	1s, boot can enter the working mode
Data is stored	Unlimited, machine storage 1000 groups, the excess part can be stored in the server, can export data
Wireless communication	Based on Bluetooth 4.2 protocol standard, the working band is 2.4GHz, the maximum transmission range is 60m
Software upgrade	Mobile phone APP Internet update, enable Bluetooth synchronization upgrade machine software
Management function	The equipment owner can be bound as the highest authority, and can remotely view the welding data, parameter settings, fault alarm information, etc. of any splicing machine under his name. The working time of the equipment can be set. The manager can effectively manage a single or multiple equipment
Interface	USB2.0 (Type A) can be used to connect external LEDs lights and charge mobile devices
Return loss	Better than 60 dB
Product protection	Waterproof, dustproof and fall proof
Power supply	Input AC100 - 240V 50/60Hz, output DC13.6V/4.8A, the current power mode can be identified, real - time monitoring of the current battery level
The work environment	Temperature: - 15℃~50℃, Humidity: < 95%RH (no condensation), working altitude: 0 ~ 5000m, The maximum wind speed: 15m/s
