Application
Only suitable for terminal fiber splicing with low splicing precision requirements, very small quantities, and a relatively favorable construction environment (dust, temperature, altitude).

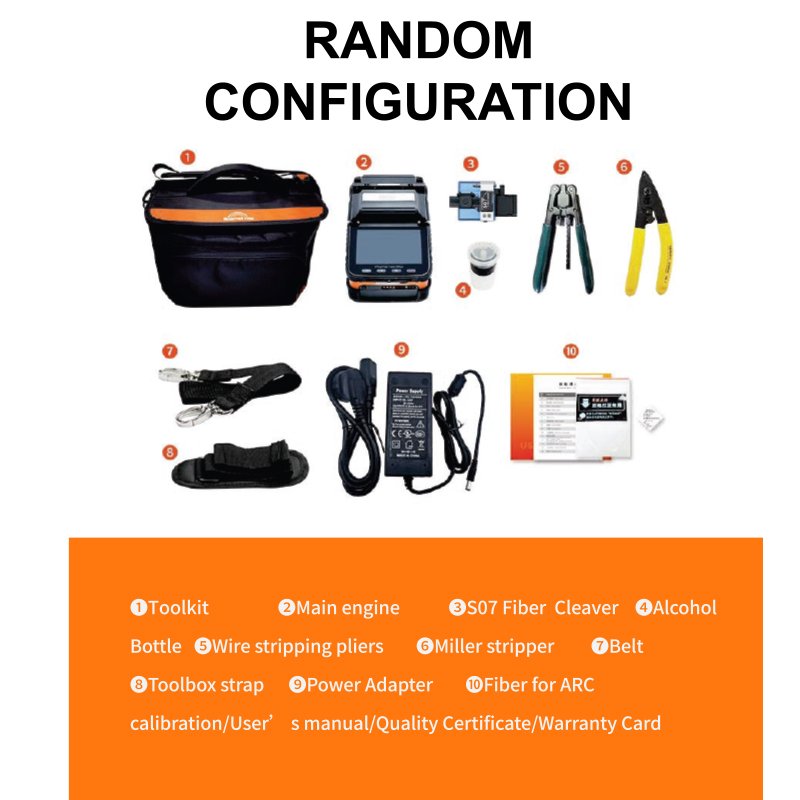

Features

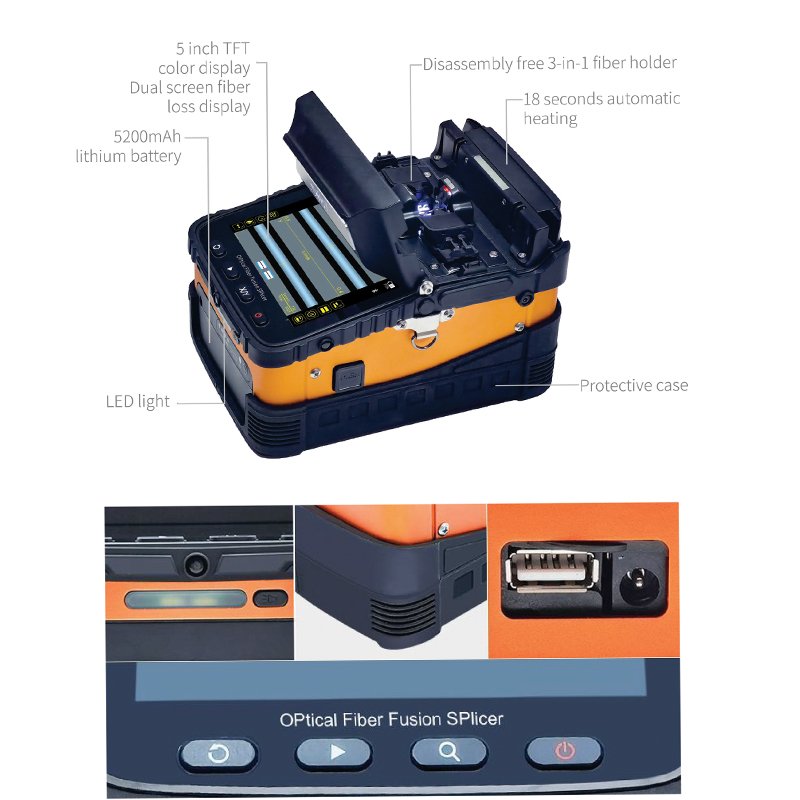

1. 8-second splicing 2. 18-second heating 3. 5200mAh lithium battery 4. Built-in LED illumination 5. 4 motors/automatic 6. 3-year warranty
Technical Parameters
| Fiber alignment | Core/Cladding |
| Motor count | Four motors（Ajuste de fiber: 0.5μm） |
| Slicing time | 8s |
| Heating mode | 18s, customizable according to the outdoor environment |
| Fiber type | Single-mode optical fiber (SMF - G.652C, BIF/G.657), suitable for single-mode, multimode, bare optical fiber, pigtail, drop cable, interconnection cable and invisible fusion splicing |
| Insulation diameter | 80 - 150μm |
| Perdida de splicing | 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDSI) |
| Splicing mode | Auto-focus core alignment, conventional high-precision splicing |
| Slicing way | Automatico, Semiautomatico |
| Fiber holder | Three - in - one fixture, no need to change, suitable for single/multi - mode, multi - core cable/bare fiber, tail fiber, jumper fiber, drop cable |

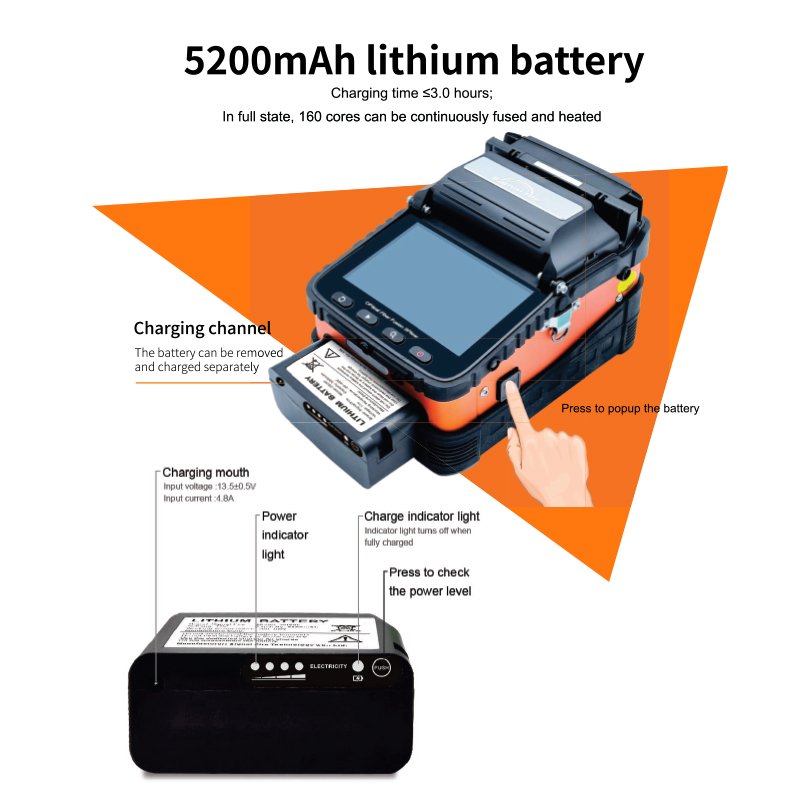

| Battery capacity | 5200mAh large-capacity lithium battery, charging time <3.5h, supports over 160 continuous splice-and-heat cycles |
| Aumento | 320x (X or Y axis, single screen), 160x (X and Y axis, dual screen) |
| Fiber diameter | 80-150μm cladding diameter; 100-1000μm coating diameter |
| Cutting length | 250μm coating layer: 8-16mm; 250-1000μm coating layer: 16mm |
| Heat-shrink tube | 60mm, 50mm, 40mm, 25mm |
| Tensile strength test | standard | 2N |
| Display | 5-inch TFT color screen |
| Charge mobile devices | The USB port can charge mobile devices such as phones |
| Start-up time | 1s, start-up enters working mode |
| Data storage | Unlimited; 1000 groups stored on the machine, additional data can be stored on the server and exported |
| Wireless communication | Based on Bluetooth 4.2 protocol standard, the working band is 2.4GHz, the maximum transmission range is 60m |
| Software update | Mobile APP update via Internet, enable Bluetooth sync for machine software update |
| Management function | The equipment owner can be bound as the highest authority and can remotely view splicing data, parameter settings, fault alarm information, etc. of any splicing machine under their name. The equipment working time can be set. The manager can effectively manage single or multiple units. |
| Interfaz | USB2.0 (Type A) can be used to connect external LED lights and charge mobile devices |
| Return Loss | Mejor que 60 dB |
| Product protection | A test de agua, polvo e intemperie |
| Power supply | Input AC100-240V 50/60Hz, output DC13.6V/4.8A, current power mode identification and real-time battery level monitoring |
| Working environment | Temperature: - 15℃~50℃, Humidity: < 95%RH (no condensation), working altitudee: 0 ~ 5000m, The maximum wind speed: 15m/s |
Frequently Asked Questions
Q: What alignment technology is used?
A: Core-alignment models are available for lowest splice loss, as well as clad-alignment models for cost-effective field splicing.
Q: What is the typical splice loss?
A: Typical splice loss is 0.02dB for single-mode and 0.01dB for multi-mode fiber, verified automatically by the built-in arc test after each splice.
Q: How many splices per battery charge?
A: Typically 200–320 splice cycles per full charge depending on the model; the AC adapter is included for continuous operation.
Q: Which fiber types are supported?
A: It supports single-mode (G.652/G.657), multi-mode and DS fiber in 250µm, 900µm, 2.0mm and 3.0mm configurations with the appropriate fiber holders.
Q: What training and after-sales support is provided?
A: We provide operation guidance and videos, spare electrodes and blades, and responsive after-sales technical support by message or remote assistance.
