Application
1. Telecommunication maintenance 2. CATV maintenance 3. Fiber optic laboratory testing 4. Other fiber optic measurements
Features

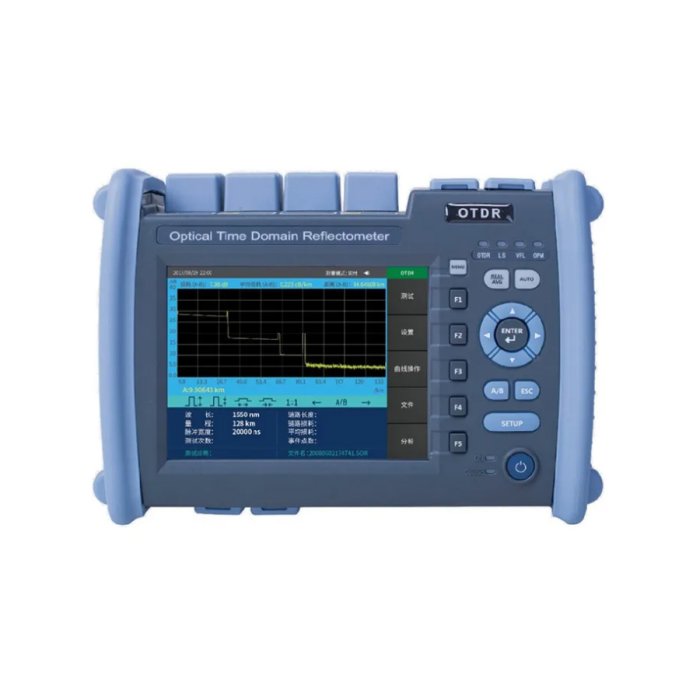

This product integrates light source, optical power meter, visual fault locator (VFL), fiber end detection, optical loss testing, fault location, optical map (Light Eye) display and single-mode/multi-mode testing functions according to customer requirements. It features a dual touch-button operation mode, and provides various external interfaces for remote control via Ethernet, connection of external USB drives and printers, and data communication with a PC through two different USB interfaces.
Technical Parameters
| Model number | NK6000 |
| Tipo | OTDR |
| Place of origin | Guangdong, China |
| Tipo | OTDR |
| Use | FTTH |
| Reflection accuracy | ± 3 dB |
| Loss accuracy | ± 0.05 dB |
| Data storage | ≥2000 |
| Interface type | FC/PC (SC, ST reemplazables) |
| Mostrar | 5.8-inch color LCD touch screen |
| Size | 227 mm * 160 mm * 70 mm |
| Weight | 2 kg |
| Warranty | 18 meses |
Frequently Asked Questions
Q: What is the dynamic range and maximum test distance?
A: Dynamic range depends on the model, typically 28–45dB, which supports fault location and loss measurement over tens of kilometers of single-mode fiber.
Q: Which wavelengths are supported?
A: 1310nm and 1550nm are standard for single-mode testing; combined models also support 850/1300nm for multi-mode fiber.
Q: How is the device powered?
A: A built-in rechargeable Li-ion battery provides long field operation; charging is via the included AC adapter or USB.
Q: Can test traces and reports be exported?
A: Yes, measurement traces and reports can be exported to a PC via USB for analysis and report generation.
Q: What after-sales support is provided?
A: Standard warranty and technical support are included, with calibration service available. Please confirm warranty terms with our sales team.
